| System parameters | ||
|---|---|---|
| System pressure | 40 | bar |
| System flow | 20 | L/min |
| Motor parameters | ||
| Power | 1.5 | kw |
| Number of revolutions | 1450 | r/min |
| Voltage | 380 | v |
| Frequency | 50 | Hz |
| Fuel tank parameters | ||
| Volume | 40 | L |
| Material | Q235 | |
| Surface treatment | Spray | |
| Feature | |
|---|---|

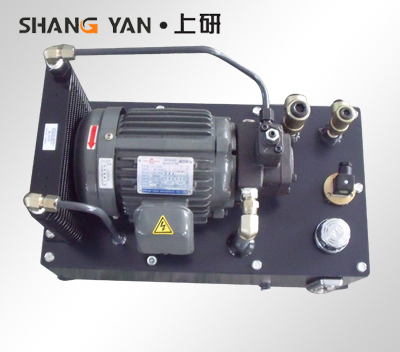

| 1. | The imported variable vane pump is used together with the inner shaft motor, which greatly reduces the heating installation space of the system |
| 2. | Imported liquid level control is adopted, which is convenient for operation and use, and improves production efficiency |
| 3. | Using laser cutting and bending technology to ensure the strength and beauty of the equipment |
| Application Industry Application | |
|---|---|
| 1. | Machining center, tooling fixture, CNC lathe |
