| Technical Parametel Technical parameters | ||
|---|---|---|
| System parameters | ||
| System pressure | 160 | bar |
| System flow | 132 | L/min |
| Motor parameters | ||
| Power | 44 | kw |
| Number of revolutions | 1450 | r/min |
| Voltage | 660 | v |
| Frequency | 50 | Hz |
| Fuel tank parameters | ||
| Volume | 850 | L |
| Material | Q235 | |
| Surface treatment | Spray | |
| Feature | |
|---|---|

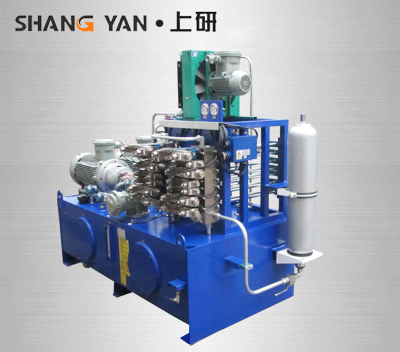

| 1. The imported variable piston pump is used together with the explosion-proof motor, which greatly improves the reliability of the system. | To |
| 2. | The imported explosion-proof solenoid valve is used in conjunction with the imported superposition valve, which is convenient for operation and use and improves production efficiency. |
| 3. | Using laser cutting and bending technology to ensure the strength and beauty of the equipment. |
| Application Industry Application | |
|---|---|
| 1. | mining machine |
| 2. | Petrochemical equipment |
| 3. | Special equipment |
